16A 32A SAE J1772 Plug Type 1 EV Charging Plug For Electric Car Charger Gun
Product Description:

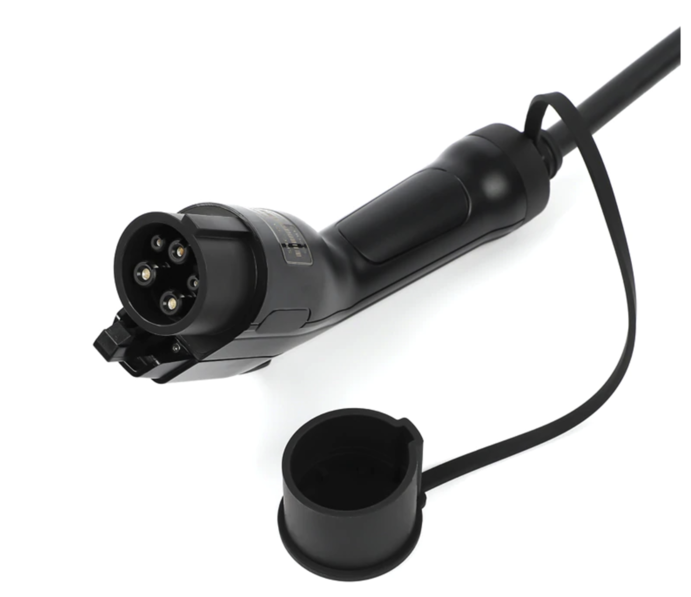

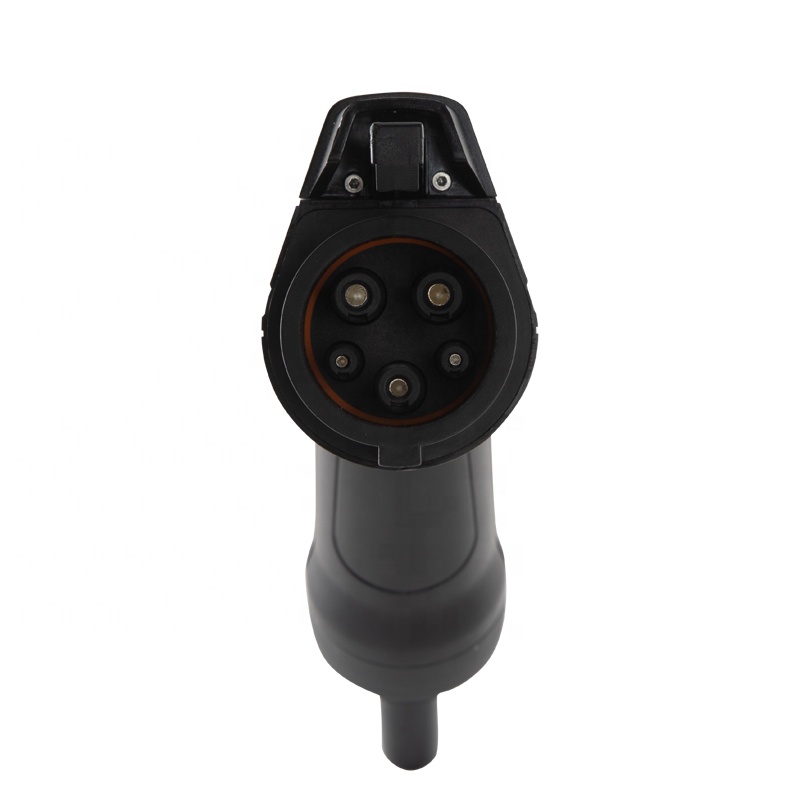

1) 32A SAE J1772 Single Phase AC Type 1 Female electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors. Our This type1 connector meet the US standards. Plug connector comes as a component including the correct resistance required for assembly. This is not a complete charging cable; you use the components offered here to mount a complete charging cable type 1 for self-assembly.
2) Key Features:
Plug in/pull out >10000 times
Reliability of materials, anti-flaming, pressure-resistant, impact resistance
EV plug j1772 meet UL 2251:2013, C22.2 NO 282-13 standards.
Waterproof and dust-proof performance.
This Charging Plug is with safe pins insulated head design to prevent direct contact and electric shock.
Universal compatible, high-quality Type 1 electric car plugs designed for 10,000+ charging cycles
Type 1 connector with IP55 level (working condition).
Product Specification:
| Vehicle connector type | Type 1 Plug - SAE J1772 |
| Operation voltage | 250V |
| IP class | IP55 |
| Rated current | 16A,32A |
| Contact Resistance | 0.5m ohm Max |
| Contact Pin | Copper Alloy, Silver or Nickel Plating |
| Operating temperature | -30℃ to +50℃ |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q3. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
